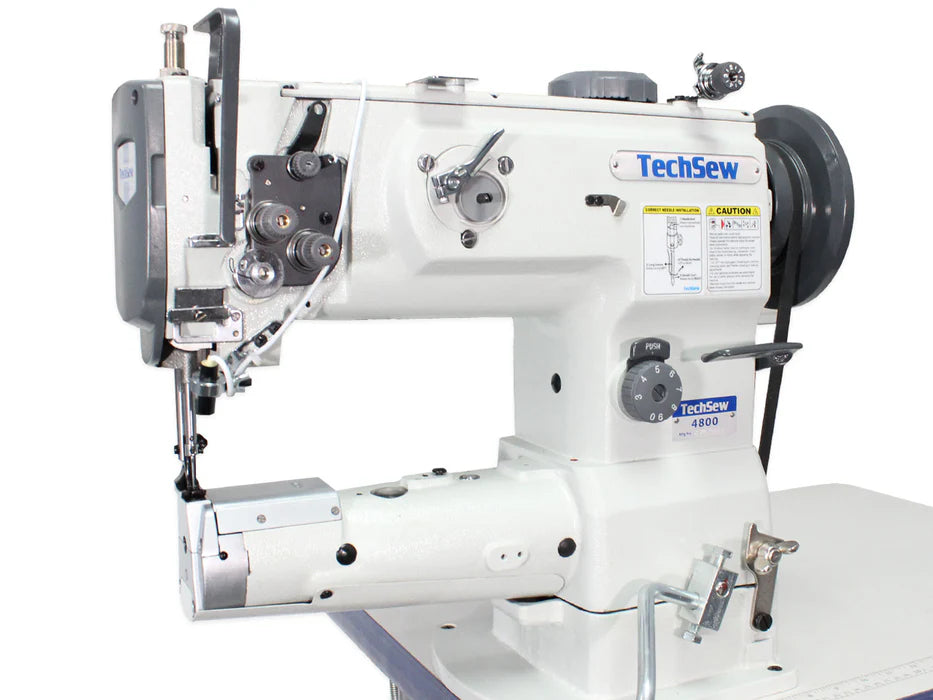

Techsew 4800 Cylinder Walking Foot Industrial Sewing Machine with Speed Reducer
Regular price
$3,774.72
In stock
**PLEASE NOTE: Currently, we can only ship within Canada. We apologize for the inconvenience**
- This product is not eligible for discounts, promotions or shipping offers.
- Orders for this product cannot be canceled, returned or exchanged.
- Orders for this product cannot be canceled after being processed.
- Orders for this product cannot be canceled, returned or exchanged.
- Orders for this product cannot be canceled after being processed.
Product Overview
- Designed for sewing leather products, nylon webbing, canvas, denim, synthetic materials and heavy fabrics
- Compound walking-foot feeding mechanism allows for sewing up to 1/2" thick leather
- Adjustable speed SmartServo motor with speed reducer pulley
- 10.5" Cylinder arm
- Large extra-capacity bobbin
- Uses thread sizes #46 to #277
- Dual tension control
- Adjustable presser foot climbing mechanism
- Includes assembled table and adjustable speed SmartServo motor
- Includes limited lifetime warranty
- Comes with Speed Reducer
The Techsew 4800 with Speed Reducer is designed for sewing a broad range of leather goods including bags, belts, wallets, upholstery, saddle bags, satchels and more. It is also suitable for sewing nylon webbing, canvas, denim, heavy fabrics and synthetics.
With its higher presser foot clearance, newly adopted dual-tension control, adjustable presser foot climbing mechanism and larger thread size capability, the 4800 offers increased work efficiency along with the highest seam quality for fine leather products.
APPLICATIONS:
- Light to heavy-weight leather (1-2oz to ½” maximum thickness)
- Light to medium weight nylon webbing
- Medium to heavy weight canvas, denim, fabrics, synthetic materials
MACHINE FEATURES:
- Compound walking foot feeding mechanism
- Large extra-capacity hook (M-style bobbin)
- Dual-tension control for more precise thread tension
- Adjustable presser foot climbing mechanism helps maintain consistent stitch length on uneven materials
- Includes variable speed SmartServo motor and speed reducer pulley for stitch by stitch control of sewing speed

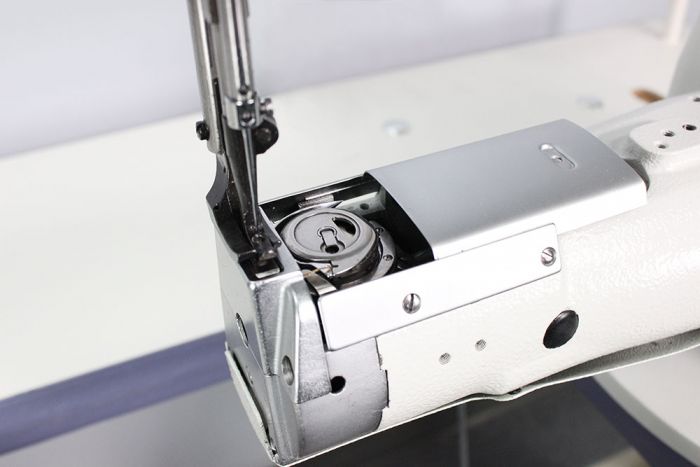

- Drop-in bobbin system for easy access to the bobbin
- Reverse feed to reinforce stitches

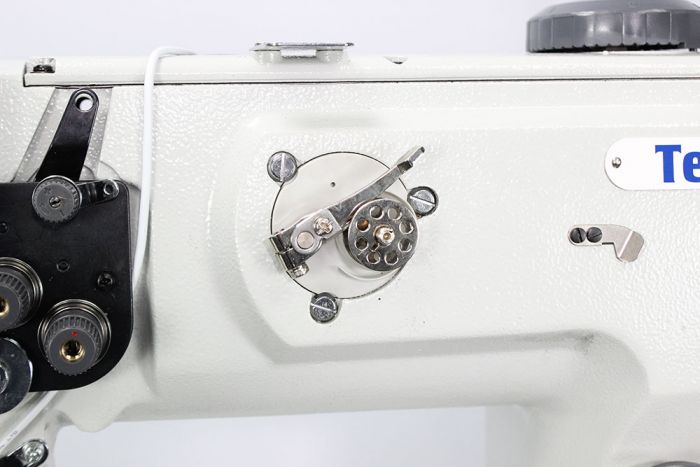

- Integrated bobbin winder
- Knee lifter to raise the presser foot
- Safety clutch

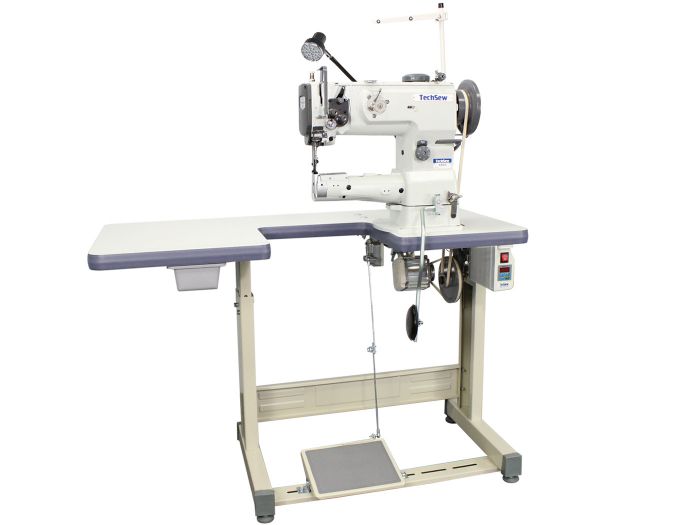

- Includes Reinforced U-table, motor, tools, LED lamp, instruction manual, accessories
- Limited Lifetime Warranty included
- Individually inspected and sewn-on prior to shipping
MACHINE SPECIFICATIONS:
- Presser foot clearance: 5/8” (16mm)
- Sewing Capacity: ½” (13mm)
- Needle Bar Stroke: 36mm
- Maximum stitch length: 9mm
- Cylinder arm length: 10.5”
- Cylinder arm diameter: 3” (72mm)
- Needles: 135x17 or 135x16 sizes 18 to 24
- Thread: sizes #46 to #277
- Maximum sewing speed: 2500 SPM
- Hook: Large extra-capacity hook
- Motor: 750W 110V variable speed SmartServo
**PLEASE NOTE: Currently, we can only ship within Canada. We apologize for the inconvenience**
